Name: WindBorneRiskBldCat3

Display Field: BldRiskCat

Type: Feature Layer

Geometry Type: esriGeometryPolygon

Description: In this project, the University of Florida (UF) GeoPlan Center is providing Geographic Information System (GIS) technical assistance for creating updated Florida statewide Ultimate Design Wind Speed line maps for the 8th Edition (2023) update to the Florida Building Code (FBC). Updates to Figures: 1609.3(1), 1609.3(2), 1609.3(3) and 1609.3(4) will be based on the standards set forth in Chapter 26 of the American Society of Civil Engineers (ASCE), the Minimum Design Loads and Associated Criteria for Buildings and Other Structures (ASCE/SEI 7-22). In addition, the GeoPlan Center shall provide GIS technical assistance in preparing local wind speed line maps for each building code jurisdiction that is impacted and dissected by the wind speed contours as updated and depicted in the draft Florida Building Code, 8th Edition (2023) Figures 1609.3(1-4) Risk Categories I - IV Buildings and Structures. This final report addresses details of the project’s progress to date on each task listed in the scope of work. In summary, Task 1 is complete, and Task 2 is complete.Notes:1.Values are nominal design 3-second gust wind speeds in miles per hour (m/s) at 33 ft (10m) above ground for Exposure C Category.2.Linear interpolation between contours. Point values are provided to aid with interpolation.3.Islands, coastal areas, and land boundaries outside the last contour shall use the last wind speed contour.4.Mountainous terrain, gorges, ocean promontories, and special wind regions shall be examined for unusual wind conditions.5.Wind speeds correspond to approximately a 1.6% probability of exceedance in 50 years (Annual Exceedance Probability = 0.00033, MRI = 3000 Years).6.Location-specific basic wind speeds shall be permitted to be determined using www.atcouncil.org/windspeed.Ultimate Design Wind Speeds, Vult, For Risk Categories I-IV Buildings and Other Structureshttps://ufl.maps.arcgis.com/apps/mapviewer/index.html?webmap=3a5d5dd7d44744eeb9537b76534a72a9

Copyright Text: Hillsborough County, FL University of Florida (UF) GeoPlan Center

Default Visibility: false

MaxRecordCount: 2000

MaxSelectionCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 24000.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 446376.82706682757
YMin: 1204037.72155682
XMax: 638707.6937166639
YMax: 1396274.9801261574
Spatial Reference: 102659  (2237)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSFSSolid
Color: [252, 201, 186, 255]
Outline:
Style: esriSLSSolid
Color: [110, 110, 110, 255]
Width: 0
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Feature Draw Order:

N/A

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• BldRiskCat ( type: esriFieldTypeString, alias: BldRiskCat, length: 30 )
• WindSpeed ( type: esriFieldTypeString, alias: WindSpeed, length: 30 )
• LastUpdateDate ( type: esriFieldTypeDate, alias: LastUpdateDate, length: 8 )
• SHAPE ( type: esriFieldTypeGeometry, alias: SHAPE )
• SHAPE.STArea() ( type: esriFieldTypeDouble, alias: SHAPE.STArea() )
• SHAPE.STLength() ( type: esriFieldTypeDouble, alias: SHAPE.STLength() )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

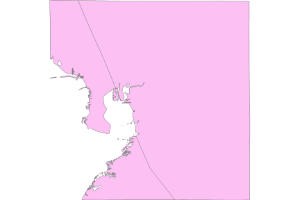

  Iteminfo   Thumbnail   Metadata
