View In:   ArcGIS Online Map Viewer

Name: RightOfWay

Display Field: DWGNAME

Type: Feature Layer

Geometry Type: esriGeometryPolyline

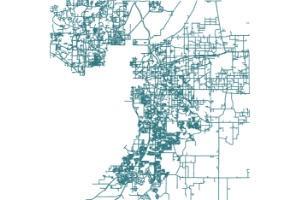

Description: This polyline dataset contains Right of Way for Hillsborough County excluding Cities and Platted Areas. The drawings that make up the Hillsborough County Right of Way Inventory Program show platting, recording, mapping or other sources of right of way information where available. In areas where the maintained right of way limits were spotted and field data collected, the drawings provide that line work in the layer (Sv-rdrw-mant-lin, the "orange" layer) as located, in NAD 83 Adjustment of 1990 SPC grid. The field location documentation for the limits of maintained right of way layer is referenced in a separate XLS file with information as to when and by whom the limits of maintenance were spotted. The limits of maintained right of way are required to be used in the preparation of plats made to be recorded in Hillsborough County. In the case of right of way that is depicted in “modern plats” the State Plane Co-ordinate data shown on plats was used to incorporate these plats into the Hillsborough County Right of Way Inventory drawings. Definitions of Right of Way as used in the Hillsborough County Right of Way Inventory:1.) Right of Way by Deed - Right of Way Owned by Hillsborough County by a recorded deed specifically to Hillsborough County.2.) Right of Way by Plat - Right of Way that has been dedicated by a recorded subdivision plat.3.) Right of Way by Deed Exception - Right of Way whereby specific footage has been explicitly exempted from a deed.4.) Right of Way by Property Line - Right of Way whereby the property line defined by a deed follows the same line as the right of way so that both lines are co-incident.5.) Limits of Maintenance – The physical limits of the maintenance of a road as delineated by the Road and Street maintenance division of the Public Works Department, where no other right of way dedication exists or where the maintenance limits exceed the described property lines in a significant manner.

Copyright Text: Hillsborough County, FL

Default Visibility: false

MaxRecordCount: 2000

MaxSelectionCount: 0

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports ValidateSQL: true

Supports Calculate: true

Supports Datum Transformation: true

Extent:

XMin: 446570.990392413
YMin: 1204080.1702908203
XMax: 638395.4282650799
YMax: 1396121.2035308257
Spatial Reference: 102659  (2237)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [160, 35, 79, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Feature Draw Order:

N/A

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: true
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: false
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field:

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID, editable: false, nullable: false, defaultValue: null, modelName: OBJECTID )
• DWGNAME ( type: esriFieldTypeString, alias: DWGNAME, editable: true, nullable: true, length: 254, defaultValue: null, modelName: DWGNAME )
• UNI ( type: esriFieldTypeDouble, alias: UNI, editable: true, nullable: true, defaultValue: null, modelName: UNI )
• MOD_DATE ( type: esriFieldTypeString, alias: MOD_DATE, editable: true, nullable: true, length: 8, defaultValue: null, modelName: MOD_DATE )
• MOD_BY ( type: esriFieldTypeString, alias: MOD_BY, editable: true, nullable: true, length: 2, defaultValue: null, modelName: MOD_BY )
• FOLIO ( type: esriFieldTypeString, alias: FOLIO, editable: true, nullable: true, length: 32, defaultValue: null, modelName: FOLIO )
• NOTES ( type: esriFieldTypeString, alias: NOTES, editable: true, nullable: true, length: 254, defaultValue: null, modelName: NOTES )
• PLAT ( type: esriFieldTypeString, alias: PLAT, editable: true, nullable: true, length: 254, defaultValue: null, modelName: PLAT )
• PROBLEMS ( type: esriFieldTypeString, alias: PROBLEMS, editable: true, nullable: true, length: 254, defaultValue: null, modelName: PROBLEMS )
• TRACT ( type: esriFieldTypeString, alias: TRACT, editable: true, nullable: true, length: 254, defaultValue: null, modelName: TRACT )
• SUPP_NOTE ( type: esriFieldTypeString, alias: SUPP_NOTE, editable: true, nullable: true, length: 254, defaultValue: null, modelName: SUPP_NOTE )
• TYPE ( type: esriFieldTypeString, alias: TYPE, editable: true, nullable: true, length: 50, defaultValue: null, modelName: TYPE )
• created_user ( type: esriFieldTypeString, alias: created_user, editable: true, nullable: true, length: 255, defaultValue: null, modelName: created_user )
• created_date ( type: esriFieldTypeDate, alias: created_date, editable: true, nullable: true, length: 8, defaultValue: null, modelName: created_date )
• last_edited_user ( type: esriFieldTypeString, alias: last_edited_user, editable: true, nullable: true, length: 255, defaultValue: null, modelName: last_edited_user )
• last_edited_date ( type: esriFieldTypeDate, alias: last_edited_date, editable: true, nullable: true, length: 8, defaultValue: null, modelName: last_edited_date )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, editable: false, nullable: false, length: 38, defaultValue: null, modelName: GlobalID )
• Shape__Length ( type: esriFieldTypeDouble, alias: SHAPE.STLength(), editable: false, nullable: true, defaultValue: null, modelName: SHAPE.STLength(), required: true )

Templates:

• Name: RightOfWay
  Description:
  Prototype:
  last_edited_user: null
  last_edited_date: null
  DWGNAME: null
  UNI: null
  MOD_DATE: null
  MOD_BY: null
  FOLIO: null
  NOTES: null
  PLAT: null
  PROBLEMS: null
  TRACT: null
  SUPP_NOTE: null
  TYPE: null
  created_user: null
  created_date: null

  Drawing Tool: esriFeatureEditToolLine

Capabilities: Query,Create,Update,Delete,Uploads,Editing

Sync Can Return Changes: false

Is Data Versioned: false

Supports Rollback On Failure: true

Supports ApplyEdits With Global Ids: false

Supports Query With Historic Moment: false

Supports Coordinates Quantization: true

Child Resources:

Supported Operations:   Query   Query Analytic   Apply Edits   Add Features   Update Features   Delete Features   Calculate   Append   Validate SQL   Generate Renderer   Return Updates   Iteminfo   Thumbnail   Metadata
